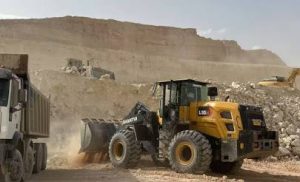

Shantui L55-B5 Wheel Loader – 5-Ton High-Efficiency Heavy Payloader
The Shantui L55-B5 is a premium, high-productivity 5-ton wheel loader (payloader) engineered to deliver maximum throughput across punishing materials-handling applications. Perfectly suited for heavy earthmoving, quarry aggregate handling, coal mining, and bulk seaport loading, the L55-B5 combines a robust reinforced chassis with Shantui’s highly acclaimed powertrain integration. It delivers aggressive breakout force and faster cycle times, establishing it as an absolute workhorse for high-demand job sites.
Key Features & Configuration Selling Points
- Golden Core Powertrain: Driven by a heavy-duty WD10 engine custom-tailored by Weichai, perfectly synchronized with Shantui’s self-developed planetary powershift transmission. This specialized mechanical alignment optimizes torque conversion, yielding strong explosive power, high traction, and exceptional fuel economy under maximum payload.
- Heavy-Duty Reinforced Framework: Both the front and rear structural frames alongside the axle box have been heavily reinforced to survive intense torsional stress. This robust design guarantees an elite load-bearing capacity when handling high-density stockpiles like iron ore, crushed rocks, and aggregate stone.
- High-Capacity Optimized Buckets: Available with high-fill-rate 3.6 m³ or 4.5 m³ bucket configurations built out of wear-resistant high-strength steel. The optimized bucket geometry ensures fast ground penetration and maximum material retention during travel cycles.
- 15% More Spacious Premium Cab: Features a fully integrated, ergonomically advanced operator cabin with 15% more interior volume. The sealed design delivers industry-leading positive pressure, excellent noise reduction, full climate control, and clear 360-degree visibility of the dump target.
- Intelligent, Low-Effort Maintenance: Engineered to reduce machine downtime. The air and diesel filters are conveniently clustered on the same side of the engine compartment. Additionally, the brake calipers on the drive axle are positioned externally for ultra-fast inspection and replacement.
Technical Specifications
| Parameter | 3.6 m³ Bucket Configuration | 4.5 m³ Bucket Configuration |
|---|---|---|
| Rated Loading Capacity | 5,000 kg (5 Tons) | |
| Operating Weight | 17,600 kg | 19,000 kg |
| Engine Brand & Model | Weichai WD12 / WD10 Group Customized Engine | |
| Total Rated Power | 162 kW @ 2200 rpm | |
| Bucket Capacity Options | 3.6 m³ (Standard Heavy Rock) | 4.5 m³ (Light Material / Coal) |
| Maximum Dumping Height | 2,910 mm | 2,920 mm |
| Dumping Distance | 1,290 mm | 1,260 mm |
| External Dimensions | 8210 × 3020 × 3450 mm | 8200 × 3020 × 3520 mm |
| Wheelbase | 3,270 mm | 3,250 mm |
| Total Hydraulic Cycle Time | 10.5 seconds (Subtotal) | |
| Maximum Travel Speed | Forward: 38 km/h | Reverse: 15 km/h | |
| Emissions Standards | Tier 2 / EU Stage II Compliant | |
Primary Applications
The Shantui L55-B5 payloader excels across multiple industrial work environments. It serves as the ultimate tool for bulk material loading in quarry mines, aggregate mixing plants, highway infrastructure subgrade construction, large logging centers, and municipal land clearing tasks requiring rapid, dependable cycles.
